Product Introduction

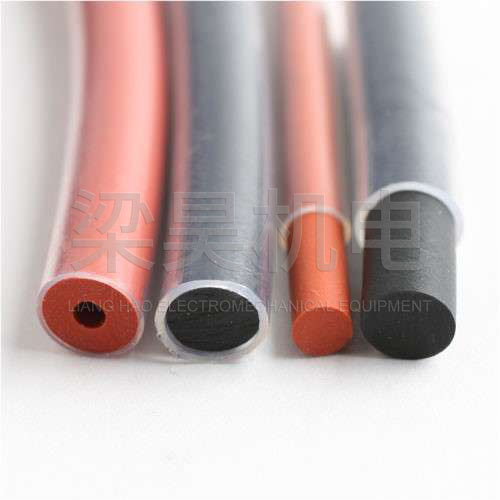

Full package fluorine O-ring series - mainly a all-weather sealing product with rubber O-rings. This sealing product is made of FEP and PFA special high-temperature resistant fluoroplastics and rubber, combined by a special process. It has the high compression permanent deformation performance of rubber O-rings, as well as the unique characteristics of fluoroplastics such as heat resistance, cold resistance, wear resistance, oil resistance, strong acid and alkali chemical corrosion resistance, and various chemical corrosion. It can be widely used in various dynamic and static sealing scenarios, and can replace all traditional rubber O-ring seals.
Product Features
Strong chemical corrosion resistance. Except for molten alkali metals and some fluorine-containing compounds that can interact with them, they are highly corrosive to other acids, bases, alcohols, ketones, aromatic hydrocarbons, chlorinated hydrocarbons, degreasers, oils, and fats;
Can be used normally within the temperature range of -60 ℃ to+220 ℃ (the use temperature varies depending on the material of the elastic core and the fluorine coated material);
Can be applied to fields with extremely high hygiene requirements such as food, medicine, and medicine;
Has physiological inertia, bactericidal, and disinfecting effects;
Has low frictional resistance, non adhesive and creep effects;
The inner core has good elasticity, greatly improving the sealing effect of the O-ring;
Widely used in aerospace, automotive industry, chemical industry, petrochemical industry, fine chemical industry, pharmaceutical industry, medical equipment, food industry, biotechnology, purified water, machinery industry, sewage treatment and other fields.
| 產品性能特征： | |||||
| 項目/Item | 單位/Unit | 標準值/Standard Value | |||
| A | B | C | |||
| 自由狀態 Free State | 硬度Hardness | Hs | 70～90 | 70～90 | 70～80 |
| 伸長率（最?。?Elongation（minimum） | % | 60 | 60 | 80 | |
| 拉伸長度（最?。?Tensile（minimum） | Mpa | 16 | 16 | 16 | |
| 壓縮率 Compressibility | % | 50-60 | 50-60 | 60-75 | |
| 回彈率 Recovery | % | ＞85 | ＞85 | ＞70 | |
| 永久變形 Permanent deformation | % | ＜10 | ＜10 | ＜10 | |
| 熱空氣老化 Hot Air Aging 230℃×24h | 硬度變化（最大） Variation of Hardness （maximum） | Hs | —5～+5 | —5～+5 | —5～+5 |
| 抗拉強度變化率（最大）Variable rate of tensile strength (maximum） | % | -15 | -15 | -15 | |
| 伸長率變化率（最大） Varibale rate of elongate rate（maximum） | % | -20 | -20 | -20 | |
| 壓縮永久變形 | 175℃×70h | % | ≦20 | ≦21 | ≦22 |
| Permanent Compression Deformation | |||||
| 顏色 Color | 黑（紅） Black（Red） | 黑Black | 紅Red | ||
| 推薦使用條件 recommended operating conditions | 使用溫度 Working temperature | ℃ | —20～+250 | —20～+200 | —50～+200 |
| 使用壓力 Working pressure | Mpa | 0～20 | |||
| 使用介質： | 除元素氟和熔融狀態金屬鈉以外的所有介質 | ||||
| Medium∶ Good for all kinds of work medium except pure fluorine and molten NA. | |||||
| 尺寸范圍： | ||
| 截面直徑D2 | 公差± | 內徑D1 |
| Cross-section Diameter | Tolerance | Internal Diameter |
| 1.80 | 0.08 | ＞6.00 |
| 2.00 | 0.09 | ＞10.50 |
| 2.62 | 0.09 | ＞10.80 |
| 3.00 | 0.10 | ＞12.00 |
| 3.53 | 0.10 | ＞13.20 |
| 4.00 | 0.10 | ＞20.00 |
| 4.50 | 0.10 | ＞25.00 |
| 4.70 | 0.10 | ＞28.00 |
| 5.00 | 0.10 | ＞30.00 |
| 5.33 | 0.13 | ＞30.00 |
| 5.50 | 0.13 | ＞50.00 |
| 5.70 | 0.13 | ＞50.00 |
| 6.00 | 0.15 | ＞50.00 |
| 6.30 | 0.15 | ＞50.00 |
| 7.00 | 0.15 | ＞65.00 |
| 7.30 | 0.15 | ＞65.00 |
| 8.00 9.00 | 0.15 | ＞70.00 |
| 8.40 | 0.15 | ＞75.00 |
| 10.00 11.00 | 0.18 | ＞80.00 |
| 12.00 | 0.18 | ＞100.00 |
| 14.00 | 0.18 | ＞150.00 |
| 16.00 | 0.18 | ＞200.00 |
| 25.00 | 0.18 | ＞200.00 |
| 截面直徑D2 | 公差± | 備注 |
| Cross-section Diameter | Tolerance | Remarks |
| ＜50 | 0.20 | |
| ＜100 | 0.30 | |
| ＜250 | 0.60 | |
| ＜500 | 0.65 | |
| ＜1000 | 1.20 |
